A standard Frogbox kit comes in a lime green case, and every kit should have the same equipment inside. Use this article to identify each item and check a kit is complete before you take it to a session.
In this article

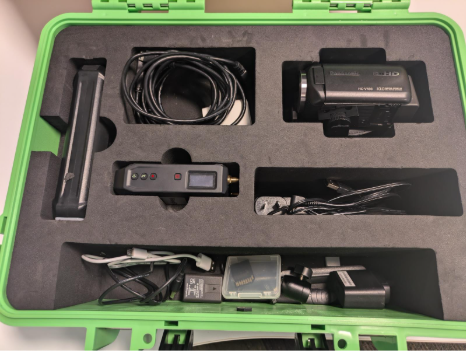

The packed kit

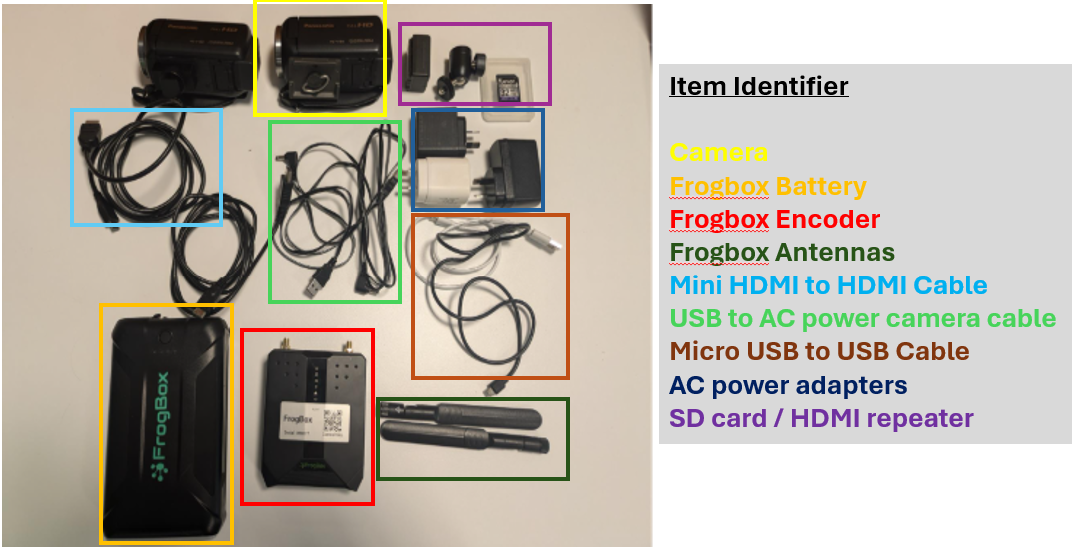

Kit contents
| Item | Quantity | Notes |
|---|---|---|
| Camera | 2 (preferred) | A kit can run with one, but two is standard. |
| Frogbox encoder | 1 | |
| Frogbox antennas | 2 | Screw onto the encoder. |
| Frogbox battery | 1 | |
| Mini HDMI to HDMI cable | 2 | Camera to encoder. |
| HDMI repeater | 2 | |
| USB to AC power camera cable | 1 per camera | For charging the cameras. |
| Micro USB to USB cable | 2 | For charging the encoder and battery. |
| AC power adapters | 1 set | Wall plugs for the charging cables. |
| SD card | 1 per camera | For recording on the camera. |
If anything is missing or damaged, let the CA Performance Data & Tech team know before the session, so it can be replaced.
Where to go next
- Match Day Processes: setting up and testing your video source before play.
- Video Capture: capturing each delivery in Analyzer.
