Analyzer Board & Visualization

Analyzer is packed with many features, and sometimes the smallest tips can make the biggest difference. This guide brings together a collection of handy hints, shortcuts, and practical techniques that can help you work faster, navigate more efficiently to get the most out of this platform.

Pitch Map, Beehive and Wagon Wheel DATA Parameter Adjustments

Analyzer allows a user to adjust the default data squares on the pitch map and beehive when viewing the impact graphics in the match dashboard and when right-clicking on a playlist using the ‘Show Playlist Wheels and Impacts’.

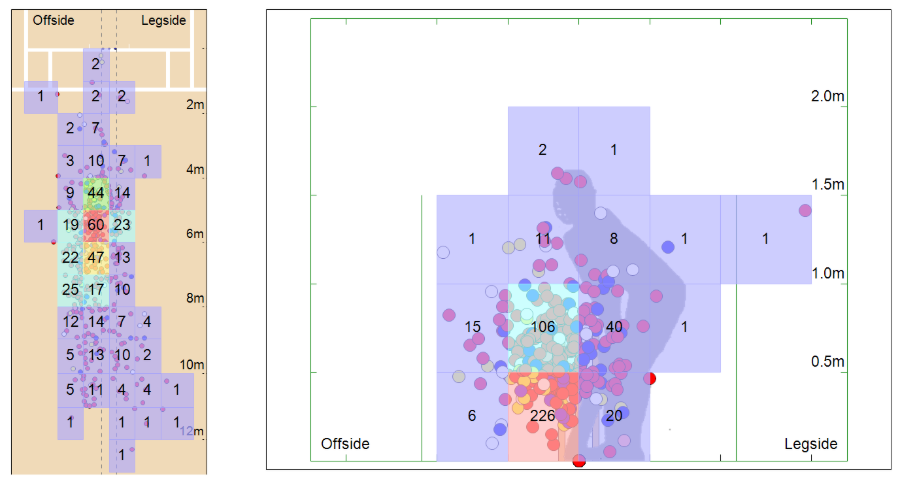

Image 1: The default Pitch Map and beehive default settings as shown in the match dashboard

Changing the PITCH MAP Data Parameters

1. Create a playlist from Select Events

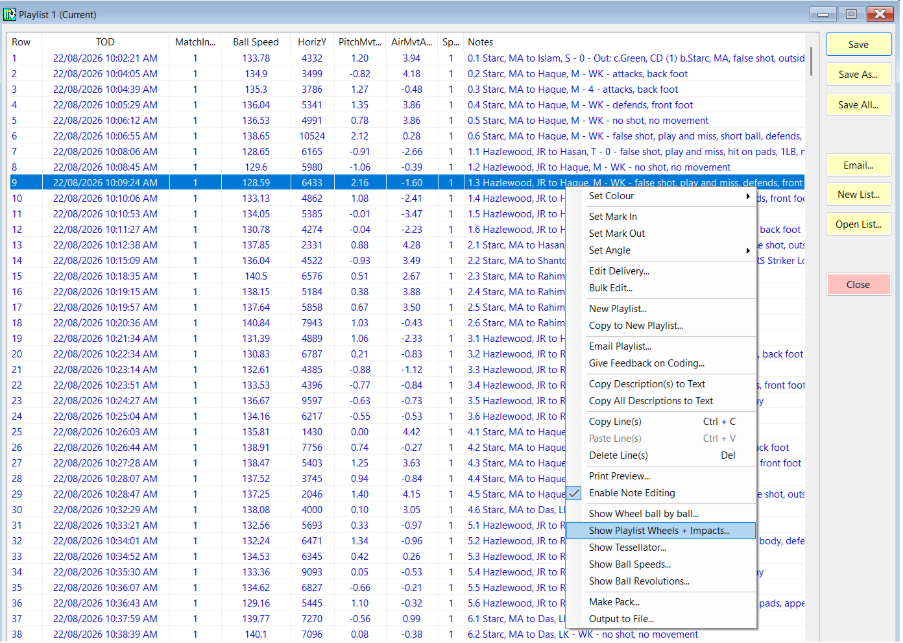

2. Right click on any playlist row and select ‘Show Playlist Wheels and Impacts’

Image 2: Selecting ‘Show Playlist + Impacts

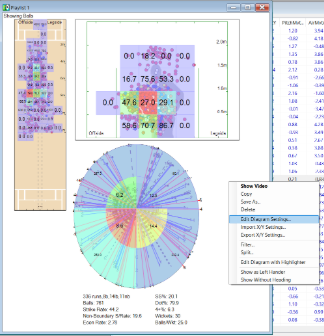

1. Right click on any clear space on the play list Pitch Map, Beehive and Wagon Wheel graphic and select ‘Edit Diagram Settings:

Image 3: Playlist Pitch Map, Beehive and Wagon Wheel

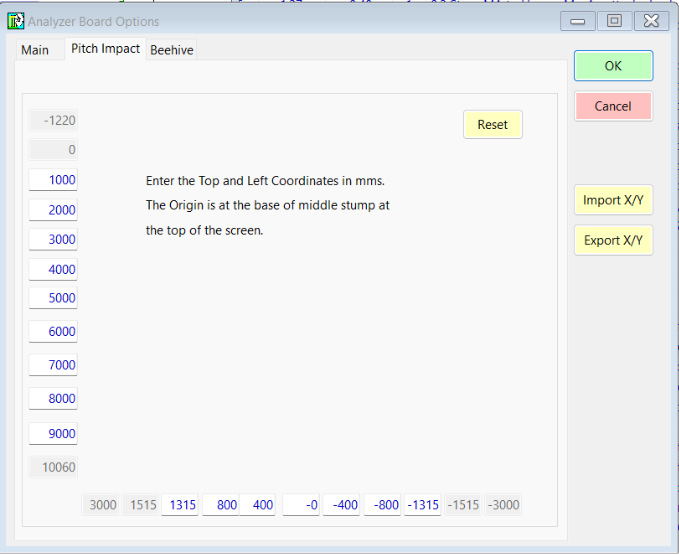

1. Select the ‘Pitch Impact Tab’ and note that the amounts on the x and y axis represent millimetres.

Image 4: The default Pitch Impact Tab view. Note (-0) = middle stump

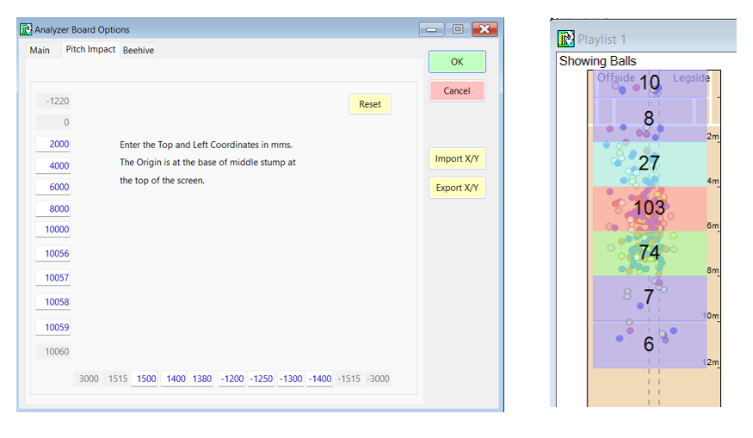

1. Adjust the amounts to your desired settings/pitch map view and click on the OK button when all boxes are completed.  To produce a TV pitch map data view, use the following parameters.

Image 5:  The TV view on the pitch map

Changing the Beehive Data Parameters

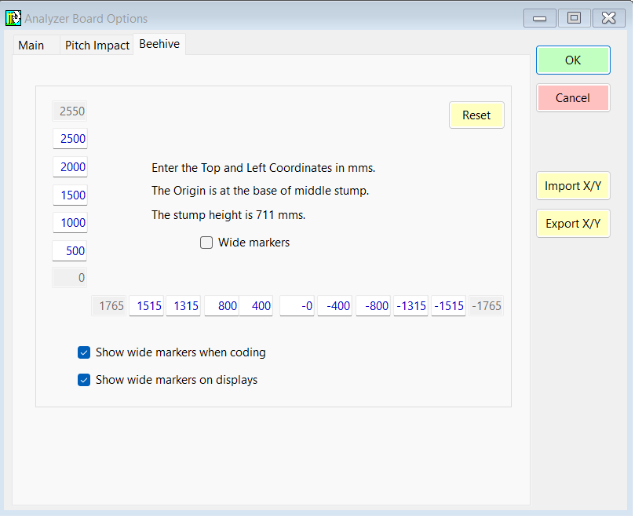

1. Select the ‘Beehive Tab’ and note that the amounts on the x and y axis represent millimetres.  This Tab also provides tick boxes to show wide markers on the coding window and on all beehive displays.

Image 6: The default Beehive Impact Tab view. Note (-0) = middle stump

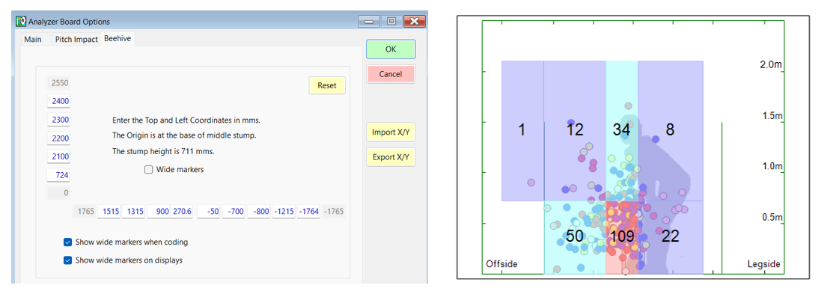

1. Adjust the amounts to your desired settings/beehive map view and click on the OK button when all boxes are filled.  To produce a line view including an above and below view of the beehive data, use the following parameters.

Image 7: The beehive data settings highlighting line + above and below the stumps.  Note that 724 mm on the Y axis is the height of the stumps including the bails.

Changing the Wagon Wheels Data Parameters

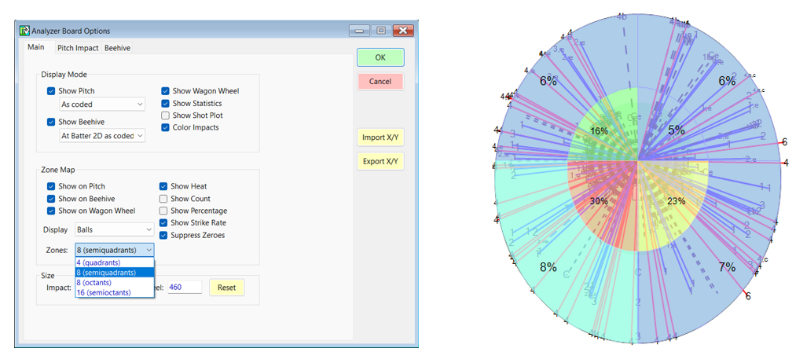

1. On the ‘Main Tab’, adjust the Zones in the Zone map area.

Image 8: Displaying the Wagon Wheel quadrants

Additional Notes:

• All data boxes in the Pitch Impact and Beehive Tabs must be completed.
• Analyzer will display any error messages or incorrect inputs to achieve your desired view.
• The ‘Main Tab’ also allows a user to adjust the overlay display of data for the pitch map, beehive and wagon wheel.  For example, runs scored, strike rates and deliveries on a count or percentage basis.
• In the Display Mode on the main tab, Analyzer enables the user to display as coded data or imported data.
